Xtreme

New developments in progress for Mazda Mx5 Single Donor

The Xtreme offers a superior stainless steel monocoque chassis, refreshing styling and the surprising practicality with the lockable boot with enough capacity to hold the weather gear as well as a weekend bag.

Start your build from £6995

Xtreme Specifcations

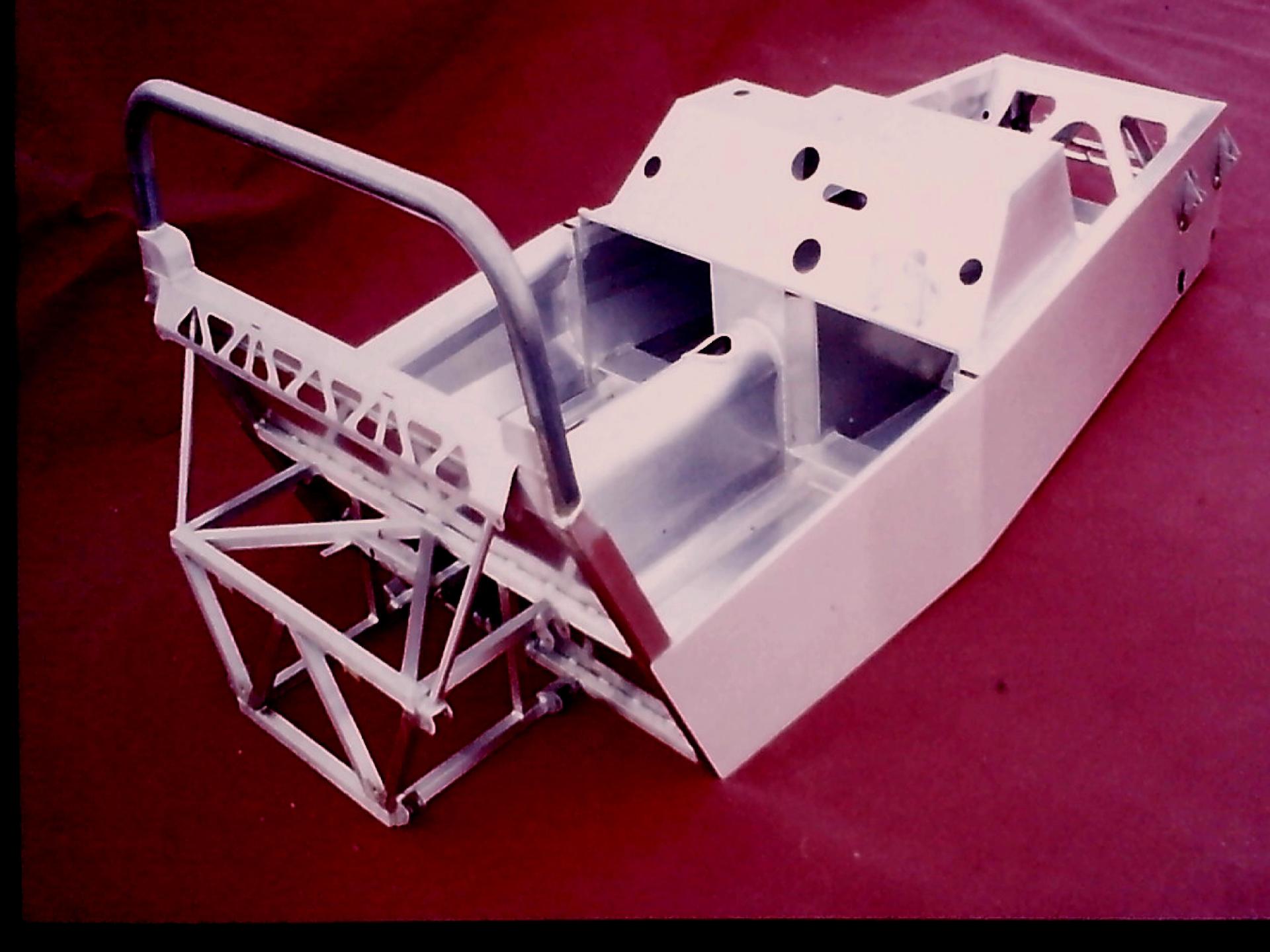

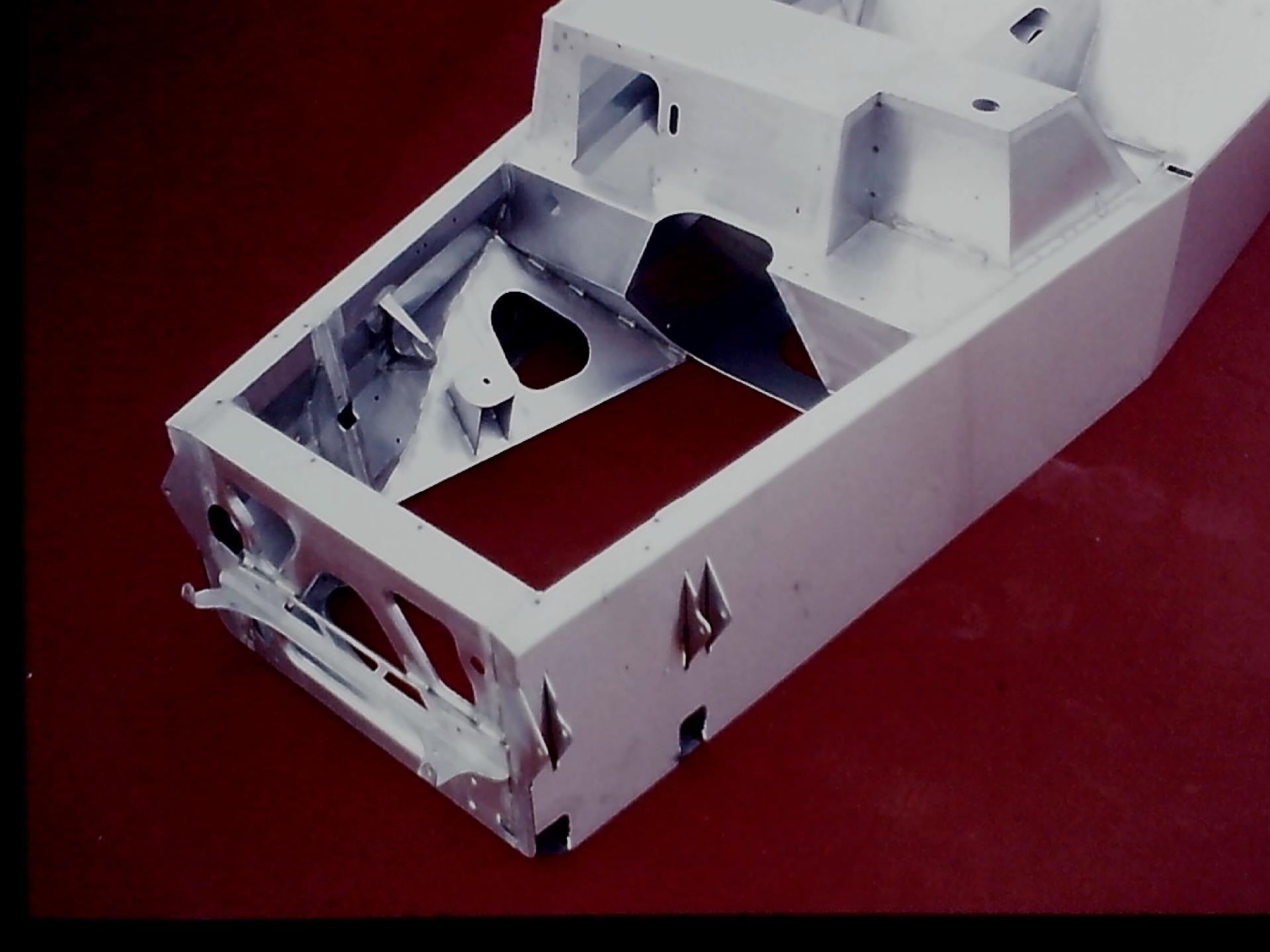

  • Chassis  Stainless steel monocoque 95Kg
  • Body Panels  GRP in self pigmented gelcoat finish, all moulding lines removed and fully surface polished
  • Engine  2.0 and 1.8 zetec are the main choice of engine however the duratec, sigma and pinto are all able to be fitted (Mazda Mx5 available soon)
  • Transmission  Rear wheel drive 5 speed manual, sequential option available
  • Rear suspension  Fully independant double wishbone
  • Front suspension  Fully independant double wishbone with inboard opposed shock absorbers
  • Steering  Unassisted rack and pinion

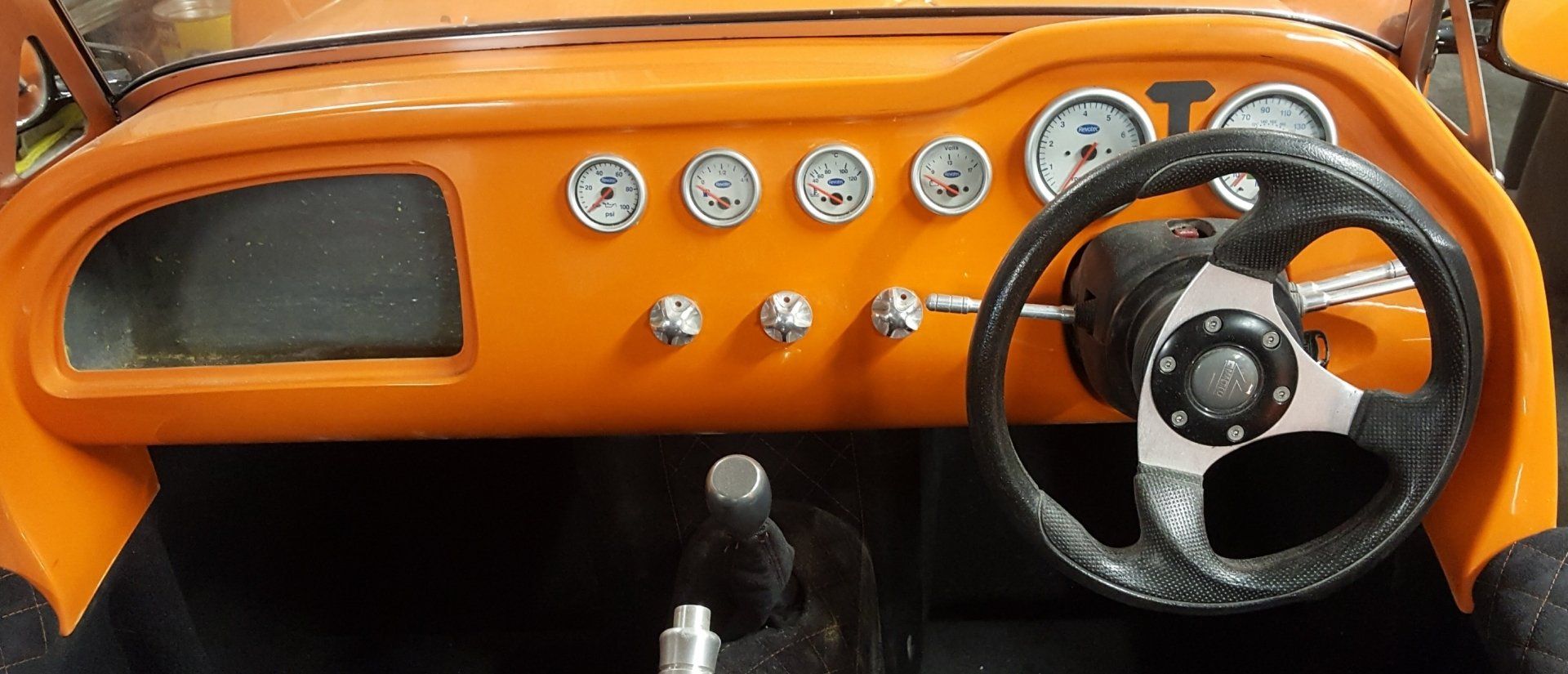

  • Interior  Height and reach adjustable steering, heated front screen
  • Dimensions  Length 3.44m
  •                        Width 1.67m
  •                        Wheel base 2.35m
  •                        Weight from 530kg depending on engine
  • Boot  160 Litres
The Xtreme uses Ford Differential, Rear Axle and steering, With most other parts being bespoke to the vehicle.

Wide range of Gelcoat Colours and trim levels available.
Various suspension upgrades.

Please download the brochure for full details
